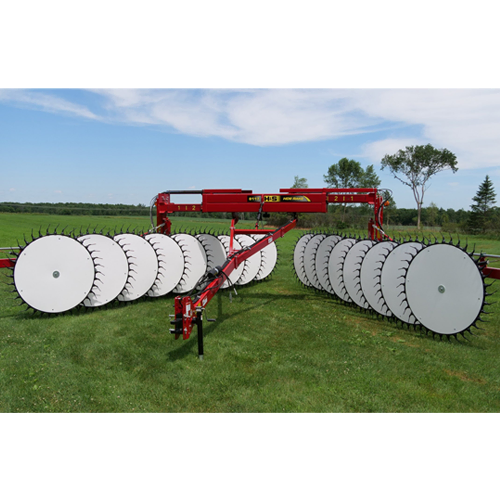

Independent Right & Left Side Frame Opening
5” x 7” Tubular Overhead Frame
Patented Torsion Dampening Rake Wheel Springs
Full Electric-over-Hydraulic Controls

•  5" x 7" overhead mainframe.
•  Each side opens independently.
•  The windrow width on the HDII can be adjusted hydraulically to a maximum of 72".
•  One hydraulic remote along with the electrical control box controls all the functions of the rake.
•  Because of the offset of the rake wheel beams, there is no need for center kicker wheels.
•  Rake wheel ground pressure can be adjusted by the threaded rod and nut on the end of the lifting pipes on each rake beam.
•  The 60" rake wheels on the HDII rake feature UV treated poly wind panels and an over center wheel stop.
•  Torsional dampening springs allow the rake wheels to roll smoothly over the terrain.
•  The rake wheel lift pipes feature a rake wheel lock for transportation.
•  The HDII rake features rake beams with a variable adjustment to set the rake wheels straight or in a tilted setting up to 10 degrees (patented).
•  Anti-wrap hay guards are standard equipment.
•  The rake wheels may be lifted independently left or right or both at the same time with the master switch.
•  Adjustable hitch and jack are standard equipment.
