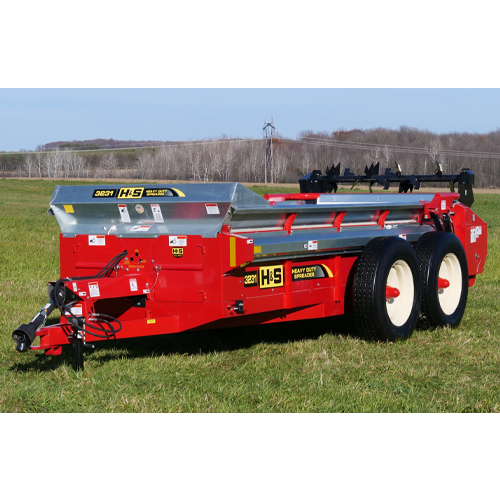

S3231 164.58 Cu. Ft. Struck Per ASAE S324.2 Heavy-Duty Manure Spreader
Engineered for the long haul.
Heavy 5" Channel Iron Frame
Solid Virgin Grade Poly Floor
T-Rod Main Apron
Hydraulic Endgate
Solid Virgin Grade Poly Floor
T-Rod Main Apron
Hydraulic Endgate
Features:
• The heavy-duty series of H&S manure spreaders feature a massive unitized welded frame with heavy floor supports, side stakes, and wrap-around steel front corners.
• Strong rear main beater side panels are slanted for clearance and wider spread, and then welded to the strong 5" U-channel side members. Compares with any on the market.
• The side flares on all H&S heavy-duty manure spreaders are made of 10-gauge g210 culvert grade galvanized steel.
• Sides, front panel and both sides of the rear hydraulic endgate use fiberglass reinforced plywood to provide for easy cleaning and minimal freeze-up.
• Solid virgin grade poly floor allows for considerably less torque to move a heavy load.
• The two-speed apron drive is standard equipment.
• The 29" diameter beater has two styles of replaceable beater paddles. Half of the 14 beater paddles are blunt for widespread, and the other half are a sharp ripper-type for cutting and shredding. Beater-side wiper blades are also standard equipment.
• The hydraulic endgate features a single cylinder with the hydraulic lines running through a 3" x 3" tube under the floor for protection. The upright position of the hydraulic cylinder stroke allows the gate to lift with the least strain at pivot points.
• Special cast steel alloy apron idler slides are used instead of idler sprockets, making for years of dependable service.
• Adjustment for the main apron is easily made by simply loosening the two side bolts and drawing up the long bolt.
• The beater drive gear box is 1:1.5 bevel gear oil bath equipped with a 4-jaw over running clutch for beater shut-off.
• The apron drive is a 50:1 bronze worm gear with shear bolt protection.
• PTO Apron Low Speed/540 RPMs: 4' 8.5" per minute.
• PTO Apron High Speed/540 RPMs: 8' 8.5" per minute
• A front splash guard is standard equipment.
• Greaseable bearings
