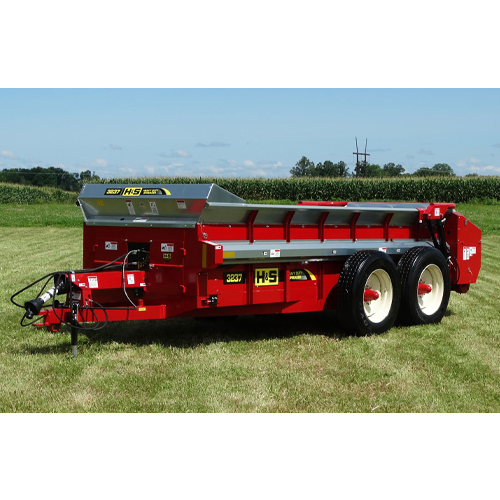

S3237 215.68 Cu. Ft. Struck Per ASAE S324.2 Heavy-Duty Manure Spreader
Engineered for the long haul.
Heavy 5" Channel Iron Frame
Solid Virgin Grade Poly Floor
T-Rod Main Apron
Hydraulic Endgate
Solid Virgin Grade Poly Floor
T-Rod Main Apron
Hydraulic Endgate
Features:
• Strong rear main beater side panels are slanted for clearance and wider spread, and then welded to the strong 5" U-channel side members.
• The side flares on all H&S heavy-duty manure spreaders are made of 10-gauge g210 culvert grade galvanized steel.
• The hydraulic endgate features 2 cylinders with hydraulic lines running through a 3" x 3" tube under the floor for protection. The upright position of the hydraulic cylinder stroke allows the gate to lift with the least strain at pivot points.
• A front splash guard is standard equipment.
• The 29" diameter beater has two styles of replaceable beater paddles. Half of the 14 beater paddles are blunt for widespread, and the other half are a sharp ripper-type for cutting and shredding. Beater side wiper blades are also standard equipment.
• Special cast steel alloy apron idler slides are used instead of idler sprockets, making for years of dependable service.
• Adjustment for the main apron is easily made by simply loosening the two side bolts and drawing up the long bolt.
• Greaseable bearings
• The side flares on all H&S heavy-duty manure spreaders are made of 10-gauge g210 culvert grade galvanized steel.
• The hydraulic endgate features 2 cylinders with hydraulic lines running through a 3" x 3" tube under the floor for protection. The upright position of the hydraulic cylinder stroke allows the gate to lift with the least strain at pivot points.
• A front splash guard is standard equipment.
• The 29" diameter beater has two styles of replaceable beater paddles. Half of the 14 beater paddles are blunt for widespread, and the other half are a sharp ripper-type for cutting and shredding. Beater side wiper blades are also standard equipment.
• Special cast steel alloy apron idler slides are used instead of idler sprockets, making for years of dependable service.
• Adjustment for the main apron is easily made by simply loosening the two side bolts and drawing up the long bolt.
• Greaseable bearings
