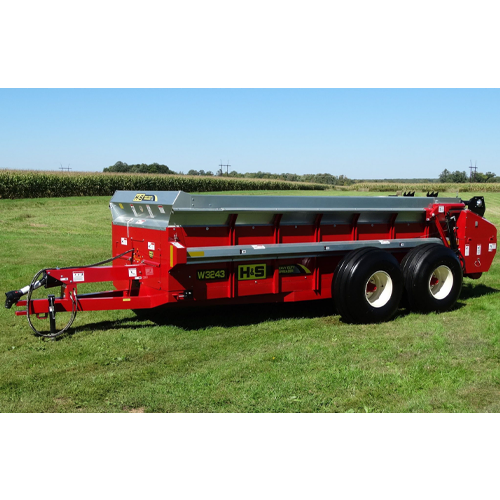

SW3243 260.59 Cu. Ft. Struck Per ASAE S324.2 Heavy-Duty Manure Spreader
Engineered for the long haul.
Heavy 5" Channel Iron Frame w/Double Pole Channels
Solid Virgin Grade Poly Floor
Hydraulic Endgate w/Dual Cylinders
Top Beater
Solid Virgin Grade Poly Floor
Hydraulic Endgate w/Dual Cylinders
Top Beater
Features:
• The heavy-duty series of H&S manure spreaders feature a massive unitized welded frame with heavy floor supports, side stakes, and wrap-around steel front corners.
• Strong rear main beater side panels are slanted for clearance and wider spread, and then welded to the strong 5" U-channel side members. Compares with any on the market.
• The side flares on all H&S heavy-duty manure spreaders are made of 10-gauge g210 culvert grade galvanized steel.
• Sides, front panel and both sides of the rear hydraulic endgate use fiberglass reinforced plywood to provide for easy cleaning and minimal freeze-up.
• The solid virgin grade poly floor allows for considerably less torque to move a heavy load.
• The two-speed apron drive is standard equipment.
• The 29" diameter beater has two styles of replaceable beater paddles. Half of the 14-beater paddles are blunt for widespread, and the other half are a sharp ripper-type for cutting and shredding. Beater side wiper blades are also standard equipment.
• The hydraulic endgate features 2 cylinders with hydraulic lines running through a 3" x 3" tube under the floor for protection. The upright position of the hydraulic cylinder stroke allows the gate to lift with the least strain at pivot points.
• Special cast steel alloy apron idler slides are used instead of idler sprockets, making for years of dependable service.
• Adjustment for the main apron is easily made by simply loosening the two side bolts and drawing up the long bolt.
• The beater drive gear box is 1:1.5 bevel gear oil bath equipped with a 4-jaw over running clutch for beater shut-off.
• The apron drive is a 50:1 bronze worm gear with shear bolt protection.
• PTO Apron Low-Speed/540 RPMs: 4' 8.5" per minute.
• PTO Apron High-Speed/540 RPMs: 8' 8.5" per minute
• The top beater provides load leveling and spreading of high heaped loads.
• The SW3243 (western) has additional features to other heavy-duty models such as double main frame channels, additional floor supports, 1045 hardened drive shaft, and #80 drive chain.
• A front splash guard is standard equipment.
• Greaseable bearings
• Strong rear main beater side panels are slanted for clearance and wider spread, and then welded to the strong 5" U-channel side members. Compares with any on the market.
• The side flares on all H&S heavy-duty manure spreaders are made of 10-gauge g210 culvert grade galvanized steel.
• Sides, front panel and both sides of the rear hydraulic endgate use fiberglass reinforced plywood to provide for easy cleaning and minimal freeze-up.
• The solid virgin grade poly floor allows for considerably less torque to move a heavy load.
• The two-speed apron drive is standard equipment.
• The 29" diameter beater has two styles of replaceable beater paddles. Half of the 14-beater paddles are blunt for widespread, and the other half are a sharp ripper-type for cutting and shredding. Beater side wiper blades are also standard equipment.
• The hydraulic endgate features 2 cylinders with hydraulic lines running through a 3" x 3" tube under the floor for protection. The upright position of the hydraulic cylinder stroke allows the gate to lift with the least strain at pivot points.
• Special cast steel alloy apron idler slides are used instead of idler sprockets, making for years of dependable service.
• Adjustment for the main apron is easily made by simply loosening the two side bolts and drawing up the long bolt.
• The beater drive gear box is 1:1.5 bevel gear oil bath equipped with a 4-jaw over running clutch for beater shut-off.
• The apron drive is a 50:1 bronze worm gear with shear bolt protection.
• PTO Apron Low-Speed/540 RPMs: 4' 8.5" per minute.
• PTO Apron High-Speed/540 RPMs: 8' 8.5" per minute
• The top beater provides load leveling and spreading of high heaped loads.
• The SW3243 (western) has additional features to other heavy-duty models such as double main frame channels, additional floor supports, 1045 hardened drive shaft, and #80 drive chain.
• A front splash guard is standard equipment.
• Greaseable bearings
