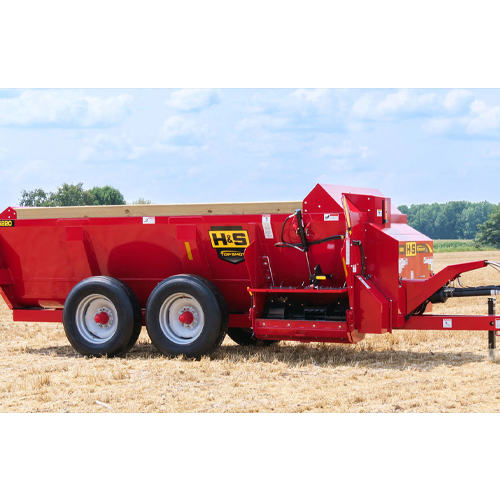

TS5220 2,009 Gallon Top Shot Manure Spreader
Engineered for the long haul.
40" Wide Side Discharge Expeller Beater
Hydraulic Raise & Lower 24" Main Auger
Adjustable Expeller Shield
Shear Bolt Protection
Hydraulic Raise & Lower 24" Main Auger
Adjustable Expeller Shield
Shear Bolt Protection
Features:
• 40" wide TOP SHOT side discharge expeller beater
• 24" diameter round core segmented auger
• The 540 RPM PTO-driven system features a sprocket reduction system with heavy-duty chain and an overrunning torque limiting clutch for protection and smooth power transfer.
• A master/slave cylinder system raises and lowers the main auger evenly to keep material moving to the expeller.
• The auger system hydraulically raises and lowers a full 8" to break-up material that may bridge during the unloading process.
• Reversible bolt-on square tooth paddles shred and rip material with a TOP SHOT action for an even spread pattern.
• The heavy-duty expeller system, with a quick release poly-lined fine spread pan and side fins, helps cut the drift of material towards the tractor and spreader and provides an excellent spread pattern.
• A manual adjust top expeller shield allows you to set the distance of material being discharged.
• The left-side tank poly liner allows material to slide to the auger.
• Front and rear splash guards
• Flip-over adjustable hitch
• Shear bolt protection
• Automatic chain oiler system
• Remote grease system
• Highway lighting system
